Solar Hot Water Mounting Hardware

Solar Hot Water Mounting Hardware

It is extremely important that you new Solar Hot Water Collectors be installed securely and properly. Whether you need a Tilt Mount upgrade for your flat or low-pitched roof, would like to upgrade to a Made in the USA Extra-Durable Face Frame or Mounting Rack, or would like hardware to mount your Evacuated Tube Solar Collectors on the ground or a pole, we have the hardware that you need.

With a range of mounting options and mounting accessories you are sure to find the mounting solution for your collector to mount it the way you want to. Take a look through our Free Standing or Flush Mount Hardware or the Accessories to find the solution that best fits your system installation needs.

Questions? Ready To Get Started?

Get more information or order our Solar Hot Water Mounting Hardware:

1.877.786.6299

Flat Plate Mounting Hardware:

TitanPowerPlus-SU Series Mounting Hardware

For TitanPowerPlus-ALDH29-V3

Flush Mounting on Asphalt Roof or Metal Roof

Item Qty Description
ConnectMaxx-TPALDH29-2FM-V3 or ConnectMaxx-TPALDH29-2FM-V2 2 or 1 Mounting kit for (2) collectors. Mounting hardware for (1) collector not sold. Base mounting aluminum rail or Base mounting rail kit + shafer roof lags. Note the V2 kit includes all hardware required to connect from collectors frame to the roof.
XMaxx-HW-PLS30-Caulk 1 Rated roof sealant for sealing all roof penetrations.
ConnectMaxx-TRUV-AS-MLLFLASH-KIT 6 When mounting on asphalt or metal roof, where normal shafer bolts from above V2 mounting kit are too wide for rafter. Normal installation on purlin / residential roof.

Flush Mounting on Tile Roof

Item Qty Description
ConnectMaxx-TPALDH29-2FM-V3 or ConnectMaxx-TPALDH29-2FM-V2 2 or 1 Mounting kit for (2) collectors. Mounting hardware for (1) collector not sold. Base mounting aluminum rail or Base mounting rail kit*.Note, some hardware from V2 kit will not be used for mounting to tile roofs (pending installation method).
XMaxx-HW-PLS30-Caulk 1 Rated roof sealant for sealing all roof penetrations.
ConnectMaxx-UV-QMUTM-TILE-V2 6 Allows for mounting to all tile roof types.
XMaxx-HW-M8-40mm-TBolt 12 T bolts for interconnecting rails
ConnectMaxx-TRHW-M8-HEXNUT 12 HEXNuts for tbolts

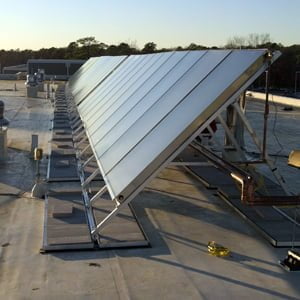

Free Standing Mounting - Option 1

Item Qty Description
ConnectMaxx-TPALDH29-2FS-V2 1 Mounting kit for (2) collectors. Mounting hardware for (1) collector not sold. Free standing mounting kit. Includes all components for “A-Frame”. Does not include lag bolts for connection into roof material.
XMaxx-HW-PLS30-Caulk 1 Rated roof sealant for sealing all roof penetrations.

Free Standing Mounting - Option 2

Item Qty Description
ConnectMaxx-TRUV-1FS-FTLEG-V3 2 Mounting kit for (2) collectors. Mounting hardware for (1) collector not sold. Front Leg for incline mounting kit (includes lag bolt for roof).
ConnectMaxx-TRUV-1FS-BLEG-V3 2 Rear Leg for incline mounting kit (includes lag bolt for roof).
XMaxx-HW-PLS30-Caulk 1 Rated roof sealant for sealing all roof penetrations.
ThermoPower Series Mounting Hardware

For ThermoPower VHP Series

Flush Mounting on Asphalt Roof or Metal Roof

Item Qty Description
ConnectMaxx-TPALDH29-2FM-V3 or ConnectMaxx-TPALDH29-2FM-V2 2 or 1 Base mounting aluminum rail or Base mounting rail kit + shafer roof lags. Note the V2 kit includes all hardware required to connect from collectors frame to the roof.
XMaxx-HW-PLS30-Caulk 1 Rated roof sealant for sealing all roof penetrations.
ConnectMaxx-TRUV-AS-MLLFLASH-KIT 6 When mounting on asphalt or metal roof, where normal shafer bolts from above V2 mounting kit are too wide for rafter. Normal installation on purlin / residential roof.

Flush Mounting on Tile Roof

Item Qty Description
ConnectMaxx-TPALDH29-2FM-V3 or ConnectMaxx-TPALDH29-2FM-V2 2 or 1 Base mounting aluminum rail or Base mounting rail kit*.Note, some hardware from V2 kit will not be used for mounting to tile roofs (pending installation method).
XMaxx-HW-PLS30-Caulk 1 Rated roof sealant for sealing all roof penetrations.
ConnectMaxx-UV-QMUTM-TILE-V2 6 Allows for mounting to all tile roof types.
XMaxx-HW-M8-40mm-TBolt 12 T bolts for interconnecting rails
ConnectMaxx-TRHW-M8-HEXNUT 12 HEXNuts for tbolts

Free Standing Mounting

The VHP series collector includes free standing mounting hardware, however depending on code requirements, additional mounting configurations are recommended.

If mounting directly on purlins (perpendicular to the roof), its recommended to use the following access for mounting to metal / asphalt roof:

XMaxx-HW-PLS30-Caulk 1 Rated roof sealant for sealing all roof penetrations.
ConnectMaxx-TRUV-AS-MLLFLASH-KIT 6 When mounting on asphalt or metal roof, where normal shafer bolts from above V2 mounting kit are too wide for rafter. Normal installation on purlin / residential roof. Includes lag bolts for fastening into wood purlins/rafters.
ConnectMaxx-TRUV-LBASE 6 Collects frame of collector to the MLL flashing kit.
ConnectMaxx-TRHW-M8-HEXNUT 6 Nut for connecting LBASE to MLLFlash Kit
ConnectMaxx-TRHW-M830MM-HEX 6 Bolt for connecting LBASE to MLLFlash Kit

Free standing option with base rail (mount standard hardware on top of base aluminum mounting rail) - Option 1

Item Qty Description
ConnectMaxx-TPALDH29-2FS-V2 1 Free standing mounting kit. Includes all components for “A-Frame”. Does not include lag bolts for connection into roof material.
XMaxx-HW-PLS30-Caulk 1 Rated roof sealant for sealing all roof penetrations.

Free standing option with base rail (mount standard hardware on top of base aluminum mounting rail) - Option 2

Item Qty Description
ConnectMaxx-TRUV-1FS-FTLEG-V3 3 Front Leg for incline mounting kit (includes lag bolt for roof).
ConnectMaxx-TRUV-1FS-BLEG-V3 3 Rear Leg for incline mounting kit (includes lag bolt for roof).
XMaxx-HW-PLS30-Caulk 1 Rated roof sealant for sealing all roof penetrations.
