OG-300 Simple Drainback Pre Packaged Kits with Flat Plate Collectors

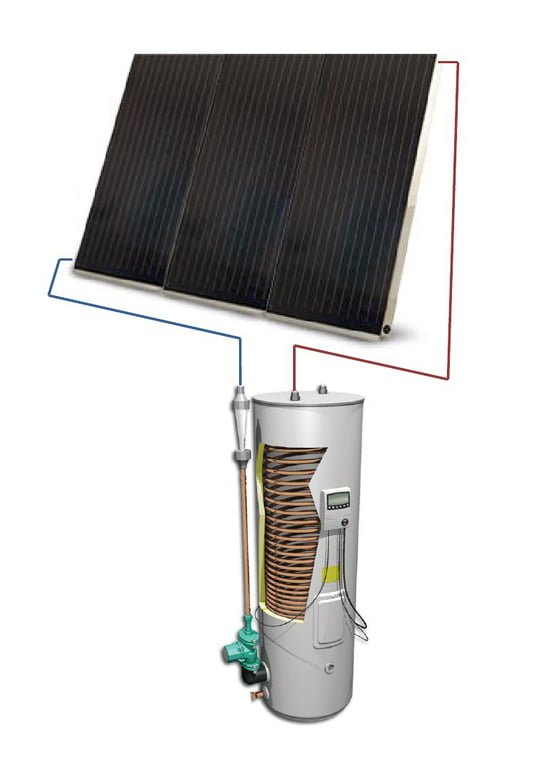

HelioMaxx Simple Drain Back Solar Hot Water Kits With Flat PlatesTheĀ HelioMaxx SDB system was designed to bring the simplicity of drainback systems together with some of the better characteristics of pressurized systems to create the easiest installation on the market. Our newly released 3rd Generation System is even more efficient in its design, components and function. The Kit has also been OG-300 Certified by the SRCC.

OurĀ StorMaxx SDB Drainback/DHW Tanks are made with extremely durable materials with a high tech titanium steel/porcelain enamel bond that is expected to last 15 years or more. Our spirally augmented copper coils allow extremely efficient heat exchange within the tanks. Our outer jacket made from painted alloy steel provides a very clean look to the system. We use polyurethane insulation for maximum heat preservation.

Benefits:

  • SRCC OG-300 Certified Pre-Packaged Solar Hot Water Kit
  • Industry Leading OG-100 SRCC Certified TitanPower Plus SU2 Flat Plate Collectors
  • High Quality, One Tank System Pre-Assembled for Fast Installation
  • Efficient – Only One Pump to Run, Only One Tank to Heat
  • Hot Spring Heat Exchanger
  • Fully Automated Drainback Controller
  • Long Life Wilo Pump
  • Works with Tap Water
  • System Requires Little Maintenance
  • Save Time and Money on Installation
  • Multiple Sizes to Fit Most Homes and Small Offices
  • Mixing Valve for Anti-scald Protection

Available Models:

Model SRCC Number Collector Panel Name Total Panel area(Sq-ft) Solar Tank Vol(g) Aux Tank Vol(g) SEF
HelioMaxx SDB 80 FP E (2xSU2) 2011065A TitanPowerPlus SU2 42.8 80 50 1.4
HelioMaxx SDB 80 FP E (2XSU2.4) 2011066A TitanPowerPlus SU2.4 51.9 80 50 1.6
HelioMaxx SDB 120 FP E (2xSU2.4) 2011066D TitanPowerPlus SU2.4 51.9 120 50 1.5
HelioMaxx SDB 80 FP E (3xSU2) 2011065B TitanPowerPlus SU2 64.3 80 50 1.8
HelioMaxx SDB 120 FP E (3xSU2) 2011065D TitanPowerPlus SU2 64.3 120 50 1.7
HelioMaxx SDB 80 FP E (3xSU2.4) 2011066B TitanPowerPlus SU2.4 77.8 80 50 2.2
HelioMaxx SDB 80 FP E (4xSU2.4) 2011066C TitanPowerPlus SU2.4 103.8 80 50 3.2
HelioMaxx SDB 120 FP E (4xSU2.4) 2011066E TitanPowerPlus SU2.4 103.8 120 50 2.8
HelioMaxx SDB 80 FP E (5xSU2) 2011065C TitanPowerPlus SU2 107.1 80 50 3.3
HelioMaxx SDB 120 FP E (5xSU2) 2011065E TitanPowerPlus SU2 107.1 120 50 2.9
HelioMaxx SDB 80 FP G (2xSU2) 2011068A TitanPowerPlus SU2 42.8 80 50 0.9
HelioMaxx SDB 80 FP G (2xSU2.4) 2011069A TitanPowerPlus SU2.4 51.9 80 50 1
HelioMaxx SDB 120 FP G (2xSU2.4) 2011069D TitanPowerPlus SU2.4 51.9 120 50 1
HelioMaxx SDB 80 FP G (3xSU2) 2011068B TitanPowerPlus SU2 64.3 80 50 1.1
HelioMaxx SDB 80 FP G (3xSU2.4) 2011069B TitanPowerPlus SU2.4 77.8 80 50 1.3
HelioMaxx SDB 120 FP G (3xSU2) 2011068D TitanPowerPlus SU2 64.3 120 50 1.1
HelioMaxx SDB 80 FP G (4xSU2.4) 2011069C TitanPowerPlus SU2.4 103.8 80 50 1.7
HelioMaxx SDB 120 FP G (4xSU2.4) 2011069E TitanPowerPlus SU2.4 103.8 120 50 1.6
HelioMaxx SDB 80 FP G (5xSU2) 2011068C TitanPowerPlus SU2 107.1 80 50 1.7
HelioMaxx SDB 120 FP G (5xSU2) 2011068E TitanPowerPlus SU2 107.1 120 50 1.6
