VHP20 Mounting Accessories Calculator

Below there are roof types checkboxes. Please select on what type of roof collectors will be mounted.

Flush Mount on Asphalt Roof with Wood Rafters

Flush Mount on Metal Roof with Wood Rafters

Flush Mount on Tile Roof with Metal Rafters

Flush Mount on Tile Roof with Wood Rafters

Tilted Mount on Tile Roof with Wood Rafters

Tilted Mount on Metal Roof with Wood Rafters

Tilted Mount on Concrete Roof

Tilted Mount on TPO Roof

Tilted Mount on Asphalt Roof with Wood Rafters

Tilted Mount Asphalt Roof with Steel Rafters

Ground Mount with Ballast

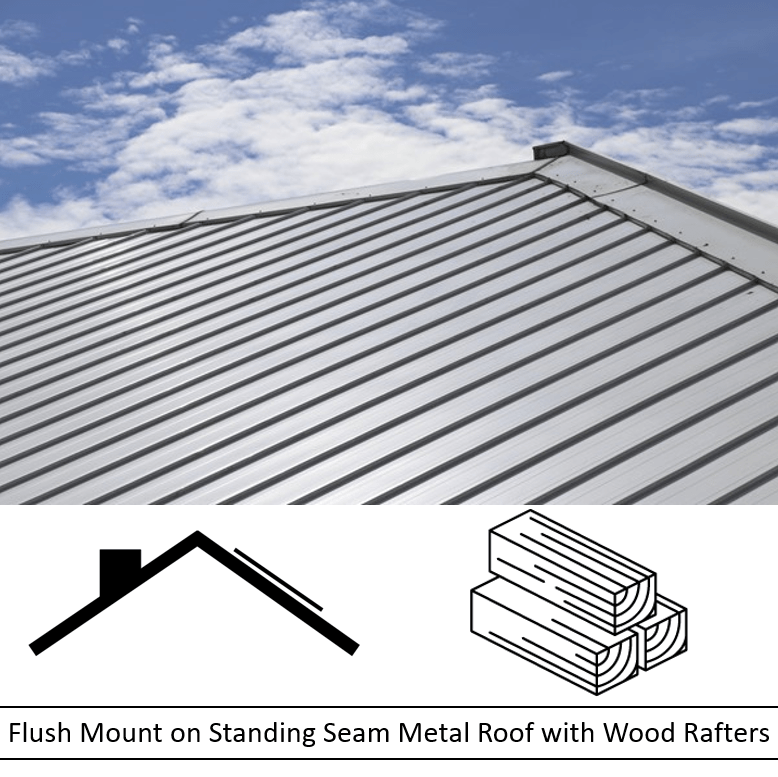

Flush Mount on Standing Seam Metal Roof with Wood Rafters

Determine the amount of solar collectors in one row.

Indicate the # of collector in a row which are going to be mounted.

Please select the rafter spacing on your roof. If the rafter spacing is diffrent than from the list, please contact us.

12 IN

16 IN

24 IN

36 IN

Please choose the right distance between rafters on your roof

What is your desired rail lenght [IN]

Please choose the PV Rail length which you want to use in your installation

Do you want SunMaxx Solar to supply you a concrete blocks?

The block is made of reinforced concrete and has 6' length.
