UniMaxx™ Series Solar Pump Stations
Solar hot water installations used to be time consuming and sometimes annoying. Mounting and plumbing the critical components such as the pump, the controller and more, used to take up hours of time that could be spent on additional installations, and forced you to charge your customers additional labor charges. the UniMaxx™ solar hot water pump stations eliminate much of the hassle and time spent installing SunMaxx solar hot water systems.
UniMaxx™ solar hot water pump stations have been tested in the world’s most mature solar markets and are now available for our US dealers and installers. A team of brilliant engineers have spent countless hours fine-tuning the UniMaxx™ solar hot water pump stations to ensure that each station cuts the time and cost of solar hot water installations, and becomes one of the most valuable components of any SunMaxx solar hot water system.
Check valves and flow meters are installed at every key part of the solar system, making maintenance and diagnosis of problems hassle free. By also incorporating the advanced SunMaxx digital controllers, this solar station truly brings solar thermal to the next generation of reliability, efficiency, and ease of installation, use, and repair.
These modular systems make design changes and customization easy. Brass is exclusively used for any part in contact with water, with precise sealants making these stations highly temperature resistant. The insulation of the SunMaxx UniMaxx™ systems meet all requirements for heating systems and are designed to combine these parts into one sleek, aesthetic package.
- Built-In Industry-Leading Solar Hot Water Circulator Pump(s) Included
- Advanced Digital Temperature Controllers Included
- Designed To Be The Central Hub Of Your Solar Thermal Plumbing System
- Cuts The Time & Hassle Of Solar Hot Water Installations
- Delivers Lower Cost Installations
Related Documents & Downloads
Questions?
Ready To Get Started?
Get more information or order our Solar Pump Stations:

Important Notice:
The following models have been discontinued, and are no longer available:
AVAILABLE NOW
Available Models
Below is a list of available UniMaxx Series solar pump stations and accessories required to complete your hot water system. We strongly recommend using the parts of the system provided by us to ensure its proper functioning.
Solar Pump Stations
-
UniMaxx™-Plus Small Commercial Solar Pump Station with PSI Guage
Solar Pump Stations
Best solution for small solar hot water system
Complete construction easy to montage
Uses high quality pump
Pressure gauge is included -
UniMaxx™-Plus Small Commercial Solar Pump Station without PSI Guage
Specifications:
Height (with insulation): 18.66 in
Width (with insulation): 12.13 in
Shipping Weight: 19 lbs
Pump: WILO Star S30 U-25-180 (1/10 HP)
Flow Meter: 1 – 10 gpm
Piping /…
UniMaxx Compression Connectors
Fittings
-
Expansion tank fittings 3/4in GxNPT
Expansion Tank Fitting
Used in connection the expansion tank with system
Diameter 3/4 IN
Thread change – G to NPT
Replacement Parts
-
UniMaxx™ Solar Pump Station Replacement Pump
Replacement pump:
Suitable for solar systems
Threaded connection: 1 1/2IN
Model: Wilo Star S30 U25
Replacement pump for pump skid station -

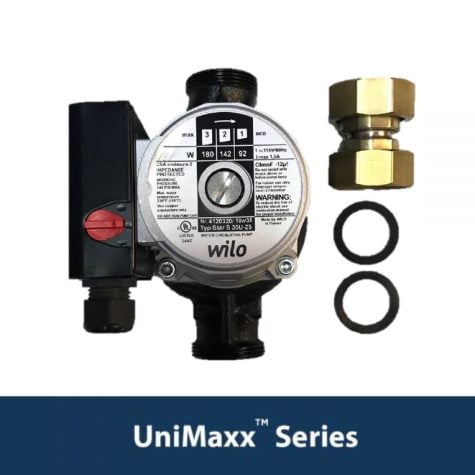

UniMaxx™ Solar Pump Station Booster Pump
Replacement pump:
Suitable for solar systems
Threaded connection: 1 1/2IN
Model: Wilo Star S30 U25
Booster pump for pump skid station
System Charge Kit
-
System Charge Kit
Solar glycol system charge kit
Universal connections
Suitable for solar systems
