Solar Hot Water Storage Tanks Made in USA

StorMaxx solar hot water storage tanks from SunMaxx are industry-leading solar storage tanks ideal for a variety of residential, commercial and municipal solar hot water and heating applications, including:

  • Domestic Hot Water
  • Radiant / Space Heating
  • Pool / Spa Heating
  • Process Heating

StorMaxx solar hot water storage tanks are available in a variety of sizes making them ideal for the smallest 2 person domestic hot water system to the largest commercial / municipal solar heating system.

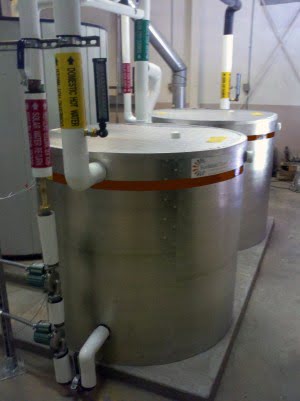

StorMaxx solar storage tanks are used in thousands of solar hot water and heating systems across the United States and around the world. Top StorMaxx tank users include Fort Hood US Army Base, Westchester Community College, the Broome County YMCA and many, many more.

StorMaxx solar hot water storage tanks come in a wide range of sizes for a wide range of projects so there is surely one just right for the install at hand. We have tanks for residential systems ranging from 60 to 120 gallons in storage capacity and include copper coil heat exchanger which make the tanks hook up easily to any SunMaxx system.

Sizing Guide: Find The Perfect Storage Tank For You

Let us walk you through choosing the right solar storage tank for your needs!

Available Storage Tanks:

Residential Storage Tanks | Residential Tank Sizing Guide

StorMaxx SE Solar Hot Water Storage Tanks

StorMaxx SE Storage Tanks

The StorMaxx SE is a durable porcelain enamel, glass-lined tank. Highly resistant to abrasive water. Not susceptible to damage due to the presence of chloride in the water. Built to last - Inner tank is hand-crafted from heavy gauge steel. Longer life equals a higher "Return on Investment".Outer jacket made from steel and powder coated for a lasting, durable finish.

  • Automatic controls - immersion aquastat used
  • Factory installed brass drain valve - accessible, tamper-proof
  • Factory installed T&P valve - CSA listed
  • 2" Non-CFC foam insulation - decreases standby heat loss
Model Capacity (G) # Heat Exchangers Diameter (in) Height (in) Weight (lb) Backup Heat Source Certification(s) More Info
StorMaxx-SE-080-1HX-EE 80 1 24 64 307 Electric   Click Here
StorMaxx-SE-080-2HX-EE 80 2 24 64 337 Electric   Click Here
StorMaxx-SE-119-2HX-EE 119 2 27.6 74.8 437 Electric   Click Here
StorMaxx CTEC Solar Hot Water Storage Tanks

StorMaxx CTEC Storage Tanks

StorMaxx CTec solar hot water storage tanks are large 211 gallon, low pressure solar thermal storage tanks. CTec tanks have three internal exchanger coils and enough insulation to earn them an R-value of 16.

  • 2 bare tube steel coil heat exchangers
  • 1 corrugated stainless steel coil heat exchanger for DHW
  • 6 ports for supply, return, stratification and recirculation
  • Sensor ports Included
  • 4" CFC Free soft foam insulation with PVC coating
Model Capacity (G) # Heat Exchangers Diameter (in) Height (in) Weight (lb) Backup Heat Source Certification(s) More Info
StorMaxx-CTEC-264-2HX-V4 264 2 39 80 506 NA   Click Here

Commercial Storage Tanks | Commercial Tank Sizing Guide

StorMaxx NP Solar Hot Water Storage Tanks

StorMaxx NP Non-Pressure Commercial Solar Storage Tanks

SunMaxx manufactures a variety of solar hot water storage tanks designed for commercial and government installations. Combining both European and U.S. technology, these tanks store large amounts of solar energy at lower temperatures, which will reduce costs and improve the quality and overall performance of the solar systems.

  • Capacities from 120G up to 5000G
  • Ships flat and crated
  • Durable, efficient design & manufacturing
Model Volume (G) Weight (lbs) Diameter (in) Height (in) # of HX* Insulation (in)
StorMaxx-NP-0150G-4FT 150 129 36 48 1 2
StorMaxx-NP-0200G-4FT 200 137 40 48 1 2
StorMaxx-NP-0225G-4FT 225 141 44 48 1 2
StorMaxx-NP-0250G-4FT 250 155 48 48 2 2
StorMaxx-NP-0300G-4FT 300 166 52 48 3 2
StorMaxx-NP-0400G-4FT 400 185 58 48 3 2
StorMaxx-NP-0400G-5FT 400 222 52 60 2 2
StorMaxx-NP-0500G-4FT 500 206 64 48 4 2
StorMaxx-NP-0500G-5FT 500 226 58 60 3 2
StorMaxx-NP-0600G-4FT 600 227 70 48 5 2
StorMaxx-NP-0600G-5FT 600 264 64 60 4 2
StorMaxx-NP-0700G-4FT 700 241 76 48 6 2
StorMaxx-NP-0700G-5FT 700 270 67 60 5 2
StorMaxx-NP-0800G-4FT 800 267 80 48 7 2
StorMaxx-NP-0800G-5FT 800 274 70 60 5 2
StorMaxx-NP-0800G-6FT 800 281 63 72 5 2
StorMaxx-NP-0950G-5FT 950 309 76 60 6 2
StorMaxx-NP-1000G-5FT 1000 338 80 60 7 3
StorMaxx-NP-1200G-4FT 1200 359 96 48 9 3
StorMaxx-NP-1200G-5FT 1200 371 86 60 8 3
StorMaxx-NP-1300G-4FT 1300 386 100 48 10 3
StorMaxx-NP-1500G-5FT 1500 426 96 60 9 3
StorMaxx-NP-1500G-6FT 1500 413 86 72 - 3
StorMaxx-NP-1700G-7FT 1700 666 86 84 8 3
StorMaxx-NP-1900G-6FT 1900 723 96 72 9 3
StorMaxx-NP-2000G-6FT 2000 754 100 72 10 3
StorMaxx-NP-2100G-5FT 2100 732 110 60 10 3
StorMaxx-NP-2200G-7FT 2200 774 96 84 9 3
StorMaxx-NP-2500G-5FT 2500 784 120 60 12 3
StorMaxx-NP-2800G-7FT 2800 925 108 84 10 3
StorMaxx-NP-3500G-7FT 3500 1064 120 84 - 3
StorMaxx-NP-4000G-7FT 4000 1179 126 84 - 3
StorMaxx-NP-4500G-7FT 4500 1278 135 84 - 3
StorMaxx-NP-5000G-7FT 5000 1344 142 84 - 3

* This is the max number of heat exchangers for this tank. They must be purchased separately - please call your sales representative.

Stainless Steel Coiled Heat Exchangers

Model Description
StorMaxx-NP-A-CSS-8080FT-3/4IN-4FT 80 / 80 4FT Stacked Corrugated Stainless Steel HX (3/4IN)
StorMaxx-NP-A-CSS-8080FT-3/4IN-6FT 80 / 80 6FT Stacked Corrugated Stainless Steel HX (3/4IN)

Commercial Tank Accessories

Model Description
StorMaxx-NP-A-H20LEVEL Water Level Indicator for NP Tanks
StorMaxx-NP-A-SEISMIC Seismic Anchor Cleat Kit for Tank

Commercial Tank Passthroughs

Model Description
StorMaxx-NP-A-AWP-1-1/4INx3IN 1-1/4INx3IN Above Water Passthrough
StorMaxx-NP-A-AWP-1-1/2INx3IN 1-1/2INx3IN Above Water Passthrough
StorMaxx-NP-A-AWP-1-1/4INx5IN 1-1/4INx5IN Above Water Passthrough
StorMaxx-NP-A-AWP-1-1/2INx5IN 1-1/2INx5IN Above Water Passthrough
StorMaxx-NP-A-AWP-2IN 2IN Above Water Passthrough
StorMaxx-NP-A-AWP-3/4IN 3/4IN Above Water Passthrough

Technical Specifications

Commercial NP Storage Tanks

Construction / Material Round, 0.032 embossed aluminum
Liner (Tank & Lid) Single sheet, 0.045 thickness EPDM
Insulation Rigid R14 isocyanurate foam
Sealant RTV Silicone
Diameter (in) 32 - 142 (depending on model)
Height (in) 48 - 84 (depending on model)
Tank Capacity (G) 120 - 5000

Stainless Steel Coil Heat Exchangers

Material 3/4" Corrugated Stainless Steel, Spiral Coil
Coil Dimensions (D x H) 17" x 13"
