TitanPowerPlus-ALDH29 V3 Solar Flat Plate Collector


Experience advanced solar technology with the TitanPower ALDH29 V3, a flat plate solar hot water collector. Measuring around 4 x 8 ft, this German-made device is encased in an aluminum frame with a laser-welded absorber. Get a quantity discount on a purchase of 11 pcs per pallet. Plus, enjoy solar tax credits with OG-100 certification

SKU: TitanPowerPlus-ALDH29-V3 Category: Tag:

How to order?

  • Order online or contact sales team directly
  • 24-hour online order confirmation
  • SunMaxx Solar™: solar hot water equipment manufacturer
  • Availability and production lead times subject to production queue

Direct-from-Manufacturer Pricing

Experience the value and benefits of our manufacturer-direct pricing on all online listings. For wholesale and distribution inquiries, we encourage you to reach out to our office to receive a tailored offer that meets your needs.

Looking to connect with our office? Give us a call at 1-877-786-6299, and we'll be happy to assist you!


aldh29v3 desc

High Efficiency
Titanium Coated Absorber

  • TiNox Coated Absorber

    World leading selective surface. Made in Germany. Allows TitanPower series collector to absorb maximum energy from the sun.

  • SRCC Certified

    Eligible for all federal income solar tax credits (ITC). Up to 26% of the total project cost. (USA Projects)

  • Low Flow System

    Connect up to 14 collectors in one row. Exclusive serpentine absorber with double headers reduces pressure drop allowing for greater efficiency and small circulating pump sizes.

  • Extendable Warranty

    Warranty extensions available  for up to 20 years on eligible commercial solar hot water systems. Contact us for project design requirements.

The TitanPowerPlus™-ALDH29-V3 premium flat plate collector is the latest in flat plate technology. This collector is a step ahead with all-new mounting hardware. Combining advanced technologies and manufacturing processes from around the world, the TitanPowerPlus™-ALDH29-V3 is able to offer cutting-edge performance and premium quality with highly competitive pricing.

The collector frame allows for easy and fast mounting of up to 14 collectors in one row. This time saving mounting system is safe, cost- effective, convenient, and simple for any installation surface. The laser-welded serpentine riser tube flow pattern is perfect for low flow systems. This allows you to save on pump energy usage. The high heat output and parallel connection option makes it the ideal choice for large commercial installations with predictable flow rates.

Features & Benefits

  • Extremely high 82% efficiency
  • Adjusted to large solar installations
  • Laser-welded absorber and aluminum frame
  • 10 years performance warranty
  • 30 year expected lifetime
  • SRCC & Solar Keymark Certified
  • Free technical support

Quick Sizing
Calculators & Guides

Technical Details


  • Weight: 92.6 lbs (without crating)
  • Dimensions: 7.7 (without pipe connections) x 3.77 ft
  • Between Collector Dimensions: 0.3 ft
  • Packaging: Ships via freight on a pallet or is available for local pickup (1 pallet is available for residential or commercial delivery.)
  • Assembly Time: A collector can be assembled in 1.5 hours
  • Manufacturer: SunMaxxSolar™
  • Warranty: 10 Year limited
  • Expected Lifetime: 15 Years
  • Fitting: 3/4 PRESS


  • One (1) ALDH29-V3 collector panel

TitanPower™-ALDH 29 V-3 Series Details:

  • Gross Area (ft2)/(m2) 29.49 / 2.74
  • Net Aperture Area (ft2)/(m2) 27.7 / 2.57
  • Gross Dimensions without connections (ft)/(m) 7.74 x 3.77 x 0.312 /2.36 x 1.15 x 0.95
  • Between Collector Dimensions (ft)/(mm) 0.296 / 90
  • Fluid Capacity (gal)/(l) 0.50/ 1.9
  • Dry Weight (lbs.)/(kg) 92.6 / 42.0
  • Wet Weight (lbs.)/(kg) 97.9 / 44.0
  • Tilt Angles: 090
  • Orientation: Portrait
  • Riser Tube Flow Pattern: Double Header Serpentine
  • Max. Collectors/Row 14
  • Minimum Flow Rate (gpm)/(lpm) 0.17 / 0.644
  • Suggested Flow Rate (gpm)/(lpm) 0.20.5 / 0.7571.9
  • Maximum Flow Rate (gpm)/(lpm) 0.5 / 1.9
  • Operating Pressure (psi)/(bar) 2040 / 1.382.76
  • Maximum Pressure (psi)/(bar) 145 / 10
  • Stagnation Temperature (°F)/(°C) 392 / 200
  • Permissible Wind Load (psf)/(kPa) 55 / 2.63
  • Permissible Snow Load (psf)/(kPa) 55 / 2.63
  • Heat Transfer Fluid 4050% propyleneglycol; Water
  • Absorber Type Aluminum Sheet
  • Absorber Coating High Selective
  • Coating Absorbance 95%
  • Coating Emissivity 5%
  • Glazing Glass Low iron Tempered Mistlite Glass
  • Transmission of Glazing 91%
  • Insulation Mineral wool
  • Insulation Thickness (in)/(mm) 1.97 / 50.04
  • Collector Frame Material Powder Coated Aluminum Frame
  • Efficiency 82.0% based on absorber area
  • Heat Loss Coefficients a1 (W/m²K) 3.4
  • Heat Loss Coefficients a2 (W/m²K) 0.014


  • Domestic hot water: Normal hot water for a house
  • Radiant floor heating: Systems of any size
  • Pool and spa heating: Large and small pools
  • Residential hot water applications
  • Commercial hot water applications
  • Industrial hot water applications
  • Municipal hot water applications

The ability to convert solar energy into thermal energy is expressed by the optical efficiency of the system (ŋ0). The global solar radiation varies considerably from region to region. On a clear summer day approximately 850 W/m2 (270 Btu/ft2)can be expected, whereas clouds can reduce it to 400 Btu/ft2 (127 Btu/ft2)

Both Flat Plate and Vacuum Heat Pipe collectors are insulated to prevent heat loss, but due to extremely good insulation properties of the SunMaxx Vacuum heat pipe Solar Collectors, the “only” heat loss is via the SunMaxx Manifold with its small surface area and thick layer of high-quality polyurethane foam

ALDH29 V3 performance

How to Size your Solar Hot Water System (DHW):

On average a homeowner uses approximately 20 gallons of hot water per day per person. Using this figure you can calculate which size prepackage system is suitable for your heating requirements.

If you are looking to utilize a solar hot water heating system for space heating needs please contact our solar hot water sales department so we may provide you with an accurate assessment of your heating requirements. Typically we are able to offset between 40-80% of your home heating needs with a payback period of less than 8 years.


Need Assistance?
If you have questions need help or simply feel uncomfortable placing your order online feel free to contact the product representative at 1-800-786-0329.

While both types of collectors capture the suns energy and convert it to hot water each have there own advantages.

Evacuated Tube Collectors are best used in northern climates where freezing can occur and can be utilized in areas where temperatures drop down to -60°F. Evacuated Tubes are are extremely efficient by virtue of the Tubes themselves. Each Evacuated Tube is hermetically sealed meaning it is highly insulated due to the fact that it is a sealed atmosphere nearly impervious to outside temperatures. Evacuated tubes can also be replaced if damaged, simply by plugging it in, no need to replace the whole unit.

SunMaxx Flat Plate collectors use a highly efficient flat absorber material called Tinox which transfer heat to a series of copper tubes which circulate a 50% glycol/water mix. The collectors themselves are in essence a a sealed insulated box which captures the suns energy and transfers it via the Tinox, then through the pipes filled with glycol and into  the storage tanks.

Yes you can. Collectors can be attached to our ballast system, which uses the weight of standard patio blocks to hold the collectors in place. Wind load calculations must be done by an engineer to conform to local building codes. With the proper weight attached, collectors will stay in place without putting any holes in the roof. This has been done with our evacuated tube collectors and our flat plates. Flat plates obviously have a much higher wind resistance, and therefore require greater weight to hold them in place. Our ballast system will work with photovoltaic panels as well.

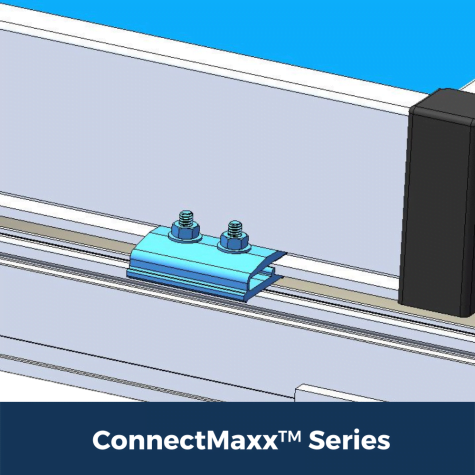

There are no guarantees with rafters when it comes to distance apart or consistency. The easiest way to deal with this problem is using the ConnectMaxx rail system. Our roof mounts can be secured where the rafters are, and then our rails can be secured to the roof mounts. All of our collectors can then be secured anywhere along the rails using sliding blocks. When using SunMaxx rails, you can worry less about where the rafters are and more about where you want your collectors!

This answer depends on what you are trying to accomplish. For simple Domestic Hot Water systems you should try and position you collectors at the same angle as your latitude. For systems that are tied into the home heating system, as in a combisystem, you should position you collectors 15 degrees higher than your latitude. For summertime use only systems, as in a pool system, you should position your collectors at your latitude minus 15 degrees.

For systems that have a high solar fraction, i.e. 75% or greater, you should increase the angle of incline in order to decrease your summertime production slightly.

Do you want to make this system perform to its highest ability or should it look nice and fit the architecture of the house?

We have all seen those albatrosses on the roof that are cantilevered at a compound angle to get a few extra BTU’s at the cost of aesthetic appeal. Here are some guidelines to consider when deciding what is most important in determining collector orientation and inclination.

For most collectors, tubes or flat plates, the angle of inclination has a 30 degree window of variation and the performance will still be within 95% of the expected maximum. That is, if your collectors should be mounted at 55 deg then you can mount them between 40-70 while losing only a small fraction of energy gain.

As for the collector orientation, that window is 60 degrees for Evacuated tubes and 30 degrees for flat plates. These considerations allow you to fit the collector to most homes’ pitch and orientation without losing too much energy gain.

Obviously you want your client to get the most out of it, but you are more likely to get additional jobs if the collectors are mounted in a way that takes into account the aesthetic appeal. Ask your Sunmaxx Representative for a copy of the Inclination and Orientation performance Chart so you can make informed decisions.

Yes it is. Depending on your type of collector, you can program your controller to manually activate the circulator which will bring heat from your storage vessel and into the collectors, which will radiate that heat back out thus melting the snow. This method only works for FLAT PLATES however and will usually take as much energy as it makes. When the sun is out in full force, the rays passing through thge snow are typically enough to create substantial heat that in turn, melts the snow on flat plates.

For Evacuated tubes however, there is very little you can do to melt the snow. If your collectors are sitting at a tilt off from the roof pitch, you should be okay because the snow will pass between the tubes onto the roof. But for flush mount EVT systems, snow can and will build up. However, in my experience, this will only affect the output for a day or two. Becuase if the sun is out enough to make any amount of BTU”S then there will be enough heat wasted at the roof/collector interface that begins to melt the snow alowing it to slide down from the top of the tubes. With only minimal exposure to the direct sunlight, the small amount of exposed tube will begin to yield significant amount of BTU’s, even though they are mostly covered. So for tubes, dont sweat it, you are not going to lose much unless of course they get covered by a couple feet or so then perhaps you’ll want to sweep them off if you can.

This will be a debate well in to the future. For an more in-depth review please watch this Click here to watch this 1/2 hour webinar. Your decision should be based primarily on the following considerations:

  • Temperature demand– What is you existing application? EVT’s will outperform FP’s at higher temp load.
  • Climate location- In a general sense, flat plates have more value than evacuated tubes in warmer climates and EVT’s will do better in cold, cloudy climates.
  • Aesthetics appeal– This is where there is no “right” answer. Instead, each person has their own personal view. We recommend that you go with it. If they prefer flat plates for that reason then you install flat plates and if they prefer evacuated tubes for their aesthetic appeal, then by all means, you should install Evacuated tubes.

The point is, you really CANT GO WRONG. Each type will yield significant value and in the end, the differences will be negligible.

Fortunately, solar thermal collectors are not nearly as sensitive to light conditions as PV collectors. As for performance, you have roughly a 60 degree window of opportunity to mount the collectors toward south before you begin losing a small bit of total production. In other words, your house can be situated 30 to the east of true south or 30 degrees to the west of true south and your performance will still be at or above 95%.

As far as tilt angle goes, this window opportunity is slightly smaller but still you can have a roof pitched about 20 degrees plus or minus of your particular latitude angle and you will still see results at or above 95% of expected.

Ask a SunMaxx rep to run a Polysun report for your particular conditions to be sure, you will be happy you did and pleasantly surprised.

Quick Sizing
Calculators & Guides

SunMaxx Solar collectors have the below certifications and standards.

  • SRCC OG-100
  • USEC UL 1703
  • ASHRAE Std 93-1986
  • ASTM E 330 (Wind Load Rating)

SRCC OG-100 Certification

Collector Connection Accessories

We recommend the below accessories.

Flat Plate Collector Accessories

We recommend the below accessories.

Flat Plate Collector Mounting Accessories

Solar Collector Warranty: 10 years

Extended Warranty: Available for purchase with qualified SunMaxx Solar installer.

SunMaxx Solar Collector Warrianty

Need help planning your solar hot water system? (here will be a link to Collector Mounting System Datasheet)

To check the temperature sensor you can use the digital multimeter tool and check the resistance of the sensor. A simple steps which allow to check the temperature sensor:
  1. Turn the system off (electricity) - safety us the most important
  2. Open the controller box
  3. Check if the connection is not loose
    • If loose fix the connection by pushing the sensor wire inside the terminal
    • Close the controller box and check if that fixed the issue
  4. Check the sensor wire resistance with multimeter (turn the multimeter switch to the resistance measurement) – reading should be around 1.101 kOhm at room temperature and around 1.250 kOhm for hot water
    • If readings are different sensor might need replacement
This short advice should help you to solve the problem.
