3/4 Dual Solar Line Set 82 ft Solar Hot Water Piping Stainless Steel

0 out of 5

$1,199.94

Upgrade your plumbing system with this 164 feet total pipe length (82 feet each pipe) designed with a 3/4″ flexible size. Manufactured in the EU, this product exhibits an R-Value of 4.8, offering superior thermal insulation. Its UV protection layer prevents sunlight damage, extending the pipe’s lifespan. With an integrated thermostat wire in the insulation jacket, temperature regulation is a breeze. Being NSF listed, it’s also safe for drinking water. This flexible stainless steel pipe promises lasting utility

SKU: FlowMaxx-MP-IDL-82FT-3/4IN-3/4IN-CSS Category:

Description

The 3/4″ FlowMaxx™ Dual IDL Stainless Steel Flexible Lineset is ideal for solar hot water system installations. Each roll includes an insulated dual run of lineset for the swift connection of the solar loop’s hot and cold lines.

Specifications

  • Pipe Diameter: 3/4″ (DN20)
  • Insulation Thickness: 3/4″, R – 4.8
  • Pipe Length: 82 feet (roll) 2X pipes (164 feet in total length)
  • Recommend Flow Rate: 2.5 – 6.5 GPM
  • Sensor Wire: Included 16 gauge sensor wire (2 conductors), runs entire length of piping
  • Weight: 68lbs
  • Shipping Dimensions: 2ft (L) x 2ft (W) x 2ft (H)
  • Packaging Details: Piping is in a roll, wrapped with recycled plastic wrap / cardboard box.
  • Origin: Made in Europe, by SunMaxx Solar

Product Highlights

The 3/4″ FlowMaxx™ Dual IDL Stainless Steel Flexible Lineset distinguishes itself with its simultaneous dual-run system for connecting hot and cold lines of the solar loop. It boasts of an efficient insulation thickness of 3/4″, ensuring energy-efficient operation.

Incorporating this FlowMaxx™ Dual IDL Stainless Steel Flexible Lineset into your solar hot water system installations is a time-saving and cost-effective decision. This leads to faster installations and minimizes lifetime maintenance costs.

Advantages of FlowMaxx™ Flexible Stainless Steel Piping

SunMaxx FlowMaxx™ series stainless steel flexible piping saves time and money when installing hydronic or solar thermal systems.
  • Suitable for all hydronic heating & cooling applications
  • Stainless steel piping NSF listed: suitable for drinking water
  • Easy click and go reusable line set connectors
  • Save time & money with reduced installation costs (reduce cost and maintenance of solar thermal systems)

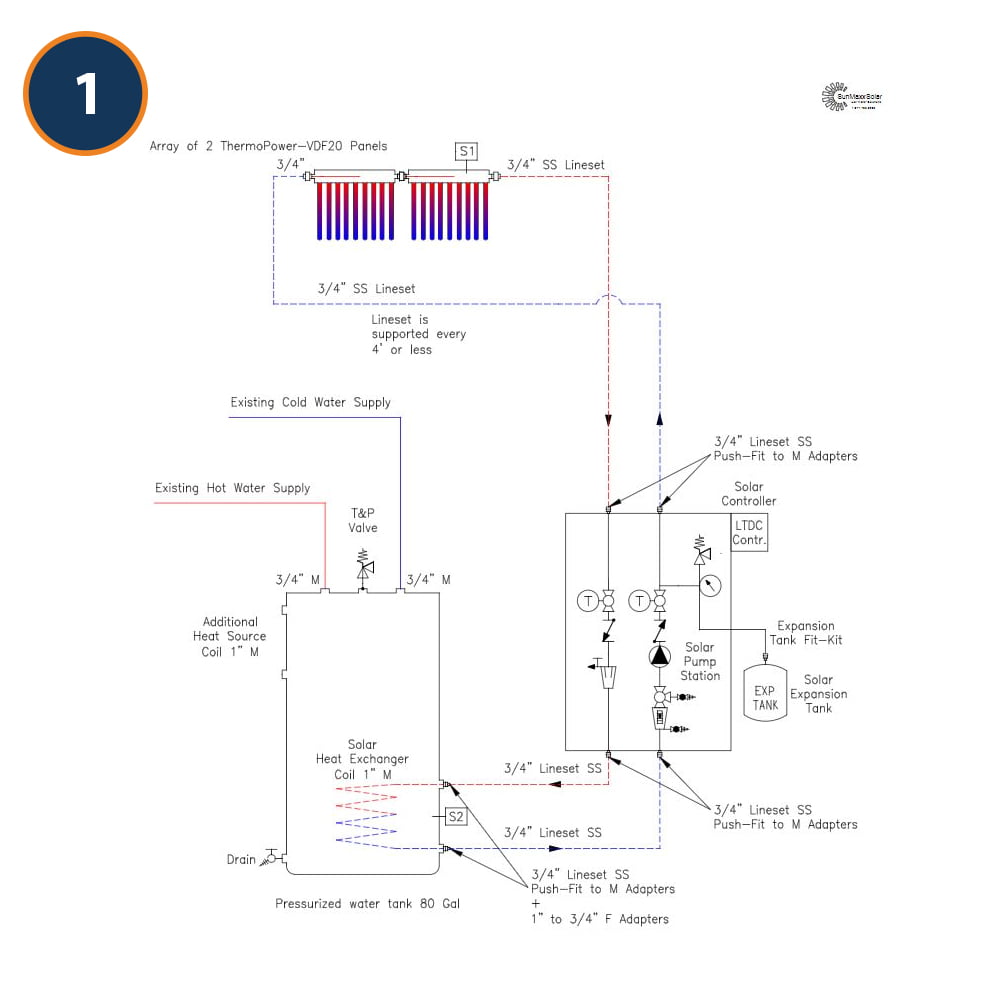

How does it work?

Simple plug and play FlowMaxx series.
1

Plan piping path of where you want to run your pre-insulated piping

2

Install line set clamps (for supporting piping)

Recommend every 24 – 36″ (vertical 36″, horizontal 24″)
3

Mount piping in line set piping support

4

Install couplings (if required)

If required, install line set couplings when joining two sections of line set together.
5

Install lineset connectors

Install connects to transition from the stainless steel piping to your existing building piping or equipment (tank, pumps, etc).

What parts & accessories do I need?

Universal fittings (for FlowMaxx series piping). Easy to stock in your tech-van, less parts to inventory.
[porto_products columns=”5″ use_simple=”” ids=”18473, 18454, 18450, 18446, 18453″]

Technical Details

FlowMaxx™ dual IDL stainless steel flexible lineset is perfect for solar hot water system installations. Each roll includes an insulated dual run of lineset allowing for connection of the hot and cold lines of the solar loop. The simplicity of the design allows for a faster, more cost-effective solar installation and limited lifetime maintenance of the system.

  • Pipe Diameter: 3/4″ (DN20)
  • Insulation Thickness: 3/4″ R – 4.8
  • Pipe length: 82 feet (roll) 2X pipes (164 feet in total length)
  • Recommend Flow Rate: 2.5 – 6.5 GPM
  • Sensor wire: Included 16 gauge sensor wire (2 conductors), runs entire length of piping
  • Weight: 68lbs
  • Shipping Dimensions: 2ft (L) x 2ft (W) x 2ft (H)
  • Packaging Details: Piping is in a roll, wrapped with recycled plastic wrap / cardboard box.
  • Manufactured by SunMaxx Solar
  • Made in Europe
Flexible lineset is perfect solution for solar piping system. It has a lot of advantages, which make it better from other.Flexibility - all to make connection in every directions, suitable for every surface. Easy installation form in domestic or residential systems.Insulation - Pipe is insulated, you don't have to buy extra insulation and waste time on it.Sensor wire is included in a piping system covered by insulationEvery lineset has dual piping with insulation and sensor wire. Moreover it fully recommended for Solar SunMaxx system and guarantee the optimal connection to the solar collectors. In our offer there are three sizes of lineset  5/8", 3/4" and 1". For more information please contact us.
In our offer we have three sizes of dual line set in pipe diameter 5/8", 3/4" or 1".  Lineset diameter depends on a size of the whole installation (number of collector or banks). For small domestic systems usually we are using 5/8" that it is the best solutions for this type. For larger system 3/4" or 1" diameter will be better to optimize the whole system. If you want to choose the right size, you can contact the engineering team. they will definitely  help you to make a right decision.
The length of lineset depends on a factor like size of installation or how far is from solar collector to the solar tank. Linesets are sold in one length 82 ft. This package includes dual lineset where each have a 82 ft length. Usually this is a optimal solution for solar system. If you need a longer connection you can add an extra lineset and connect them using the stainless steel piping coupling. Remember that couplings are sell  in lineset sizes and they have to fit to a right lineset.
[porto_products columns=”3″ use_simple=”” ids=”18473″]
  • NSF/ANSI 61 Compliant (stainless steel piping) Pending IAPMO Listing* EN 10204 3.1: DIN 1.4404
  • ASTM A312 & ASTM D792 method tested
[porto_products columns=”5″ use_simple=”” ids=”18473, 18454, 18450, 18446, 18453″]

Product Replacement Warranty: 5 year

Extended system warranty available upon request when using all SunMaxx Solar components installed by a certified SunMaxx installer.
