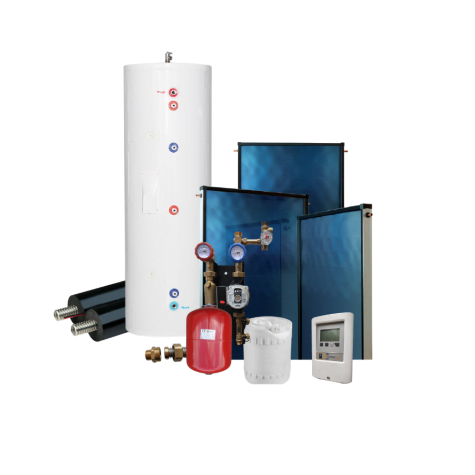

HelioMaxx™ 80G Glycol Solar Hot Water Flat Plate Collector Kit

0 out of 5

$4,799.94

The HelioMaxx™ Prepackaged solar hot water kits provide an easy way to switch to solar and include all necessary components. The 80G glycol system is ideal for colder climates and can supply enough hot water for a household of 2-4 people.

SKU: HELIOMAXX-2FP-80G-ETEC-1-KIT Categories: ,

Description

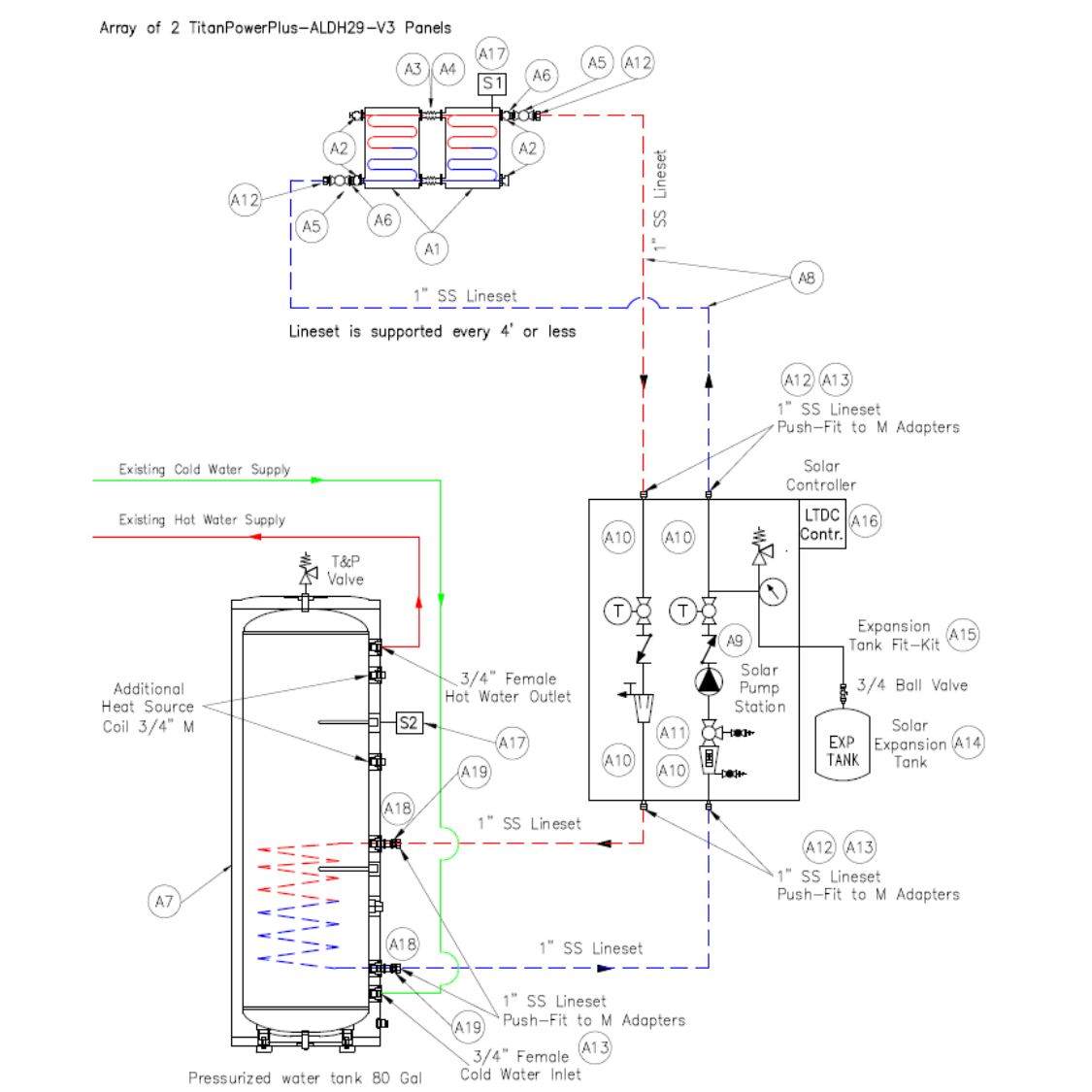

HelioMaxx™ 80G Glycol Solar Hot Water Flat Plate Collector Kit

SunMaxx Solar offers pre-packaged solar hot water heating systems for both the do-it-yourself customer and the professional installer. Each system includes the primary components required when installing a solar hot water heating system. It is our goal to keep our product cost low in order to ensure that we are making renewable energy products more affordable to the community.

Product Description

The HelioMaxx™ Prepackaged solar hot water kits make going solar easier then ever before! Our HelioMaxx™ residential kits have been designed by the SunMaxx engineering team to provide domestic hot water for your home using the best engineering practices available word-wide. All kits include the main system components including the solar storage tank, piping, controller, pump station, and glycol.

This 80G glycol system is ideal for colder, northern climates where freezing problems would damage or destroy other solar hot water systems and will provide enough hot water each day for a household of 2 to 4 people.

Features & Benefits

  • Over 50% subsidy
  • StorMaxx Premium storage tank
  • UniMaxx integrated pump station
  • Patented innovative components
  • Hassle-free installation
  • Retrofits virtually any existing system
  • 10 years performance warranty
  • Comprehensive turn-key package
  • SRCC & Solar Keymark Certified
  • Manufacturer Direct Quality and Pricing

Quick Sizing

Calculators & Guides

Important information

Mounting parts are not included in pre-packaged kits. Montage system depends on a lot of factor like (roof material, rafter spacing etc.) To calculate the collectors mounting parts you can use on of our calculators.

Technical Details

How to Size your Solar Hot Water System (DHW):

On average a homeowner uses approximately 20 gallons of hot water per day per person. Using this figure you can calculate which size prepackage system is suitable for your heating requirements.

If you are looking to utilize a solar hot water heating system for space heating needs please contact our solar hot water sales department so we may provide you with an accurate assessment of your heating requirements. Typically we are able to offset between 40-80% of your home heating needs with a payback period of less than 8 years.



Need Assistance?
If you have questions need help or simply feel uncomfortable placing your order online feel free to contact the product representative at 1-800-786-0329.

Specifications:

  • Weight: 93 lbs (without crating)
  • Dimensions: 7.7 (without pipe connections) x 3.77 ft
  • Between Collector Dimensions: 0.3 ft
  • Packaging: Ships via freight on a pallet or is available for local pickup (1 pallet is available for residential or commercial delivery.)
  • Assembly Time: A collector can be assembled in 1.5 hours
  • Manufacturer: Silicon Solar Inc.
  • Warranty: 10 Year limited
  • Expected Lifetime: 15 Years
  • Fitting: 3/4 PRESS

TitanPower™-ALDH 29 V-3 Series Details:

  • Gross Area (ft²)/(m²) 29.3 / 2.74
  • Net Aperture Area (ft²)/(m²) 27.7 / 2.5
  • Gross Dimensions without connections (ft)/(m) 7.73 x 3.77 x 0.312 /2.36 x 1.15 x 0.1
  • Between Collector Dimensions (ft)/(mm) 0.296 / 90
  • Fluid Capacity (gal)/(l) 0.57 / 2.16
  • Dry Weight (lbs.)/(kg) 93 / 42.2
  • Wet Weight (lbs.)/(kg) 116.8 / 53
  • Tilt Angles: 090°
  • Orientation: Portrait
  • Riser Tube Flow Pattern: Double Header Serpentine
  • Max. Collectors/Row 14
  • Minimum Flow Rate (gpm)/(lpm) 0.17 / 0.644
  • Suggested Flow Rate (gpm)/(lpm) 0.20.5 / 0.7571.9
  • Maximum Flow Rate (gpm)/(lpm) 0.5 / 1.9
  • Operating Pressure (psi)/(bar) 2040 / 1.382.76
  • Maximum Pressure (psi)/(bar) 145.04 / 10
  • Stagnation Temperature (°F)/(°C) 392 / 200
  • Permissible Wind Load (psf)/(kPa) 55 / 2.63
  • Permissible Snow Load (psf)/(kPa) 55 / 2.63
  • Heat Transfer Fluid 4050% propyleneglycol; Water
  • Absorber Type Aluminum Sheet
  • Absorber Coating High Selective
  • Coating Absorbance 95%
  • Coating Emissivity 5%
  • Glazing Glass Low iron Tempered Mistlite Glass
  • Transmission of Glazing 91%
  • Insulation Mineral: wool
  • Insulation Thickness (in)/(mm) 1.97 / 50.04
  • Collector Frame Material Powder Coated Aluminum Frame
  • Efficiency 82.0% based on absorber area
  • Heat Loss Coefficients a1 (W/m²K) 3.4
  • Heat Loss Coefficients a2 (W/m²K) 0.014

Applications:

  • Domestic hot water: Normal hot water for a house
  • Radiant floor heating: Systems of any size
  • Pool and spa heating: Large and small pools
  • Residential hot water applications
  • Commercial hot water applications
  • Industrial hot water applications
  • Municipal hot water applications

Glossary:

  • Gross Area: The total area of the solar collector, including any external components.
  • Net Aperture Area: The area of the collector’s absorber, which is the part that actually absorbs sunlight.
  • Gross Dimensions without connections: The physical dimensions of the collector, not including any connecting pipes or fittings.
  • Between Collector Dimensions: The distance between adjacent collectors in a row.
  • Fluid Capacity: The amount of liquid that the collector can hold.
  • Dry Weight: The weight of the collector without any liquid.
  • Wet Weight: The weight of the collector when it is filled with liquid.
  • Tilt Angles: The range of angles at which the collector can be tilted for optimal performance.
  • Orientation: The preferred orientation of the collector.
  • Riser Tube Flow Pattern: The flow pattern of the fluid in the collector’s riser tubes.
  • Max. Collectors/Row: The maximum number of collectors that can be connected in a single row.
  • Minimum Flow Rate: The lowest recommended flow rate for the fluid through the collector.
  • Suggested Flow Rate: The recommended range of flow rates for optimal performance.
  • Maximum Flow Rate: The highest recommended flow rate for the fluid through the collector.
  • Operating Pressure: The recommended range of pressures for the fluid in the collector.
  • Maximum Pressure: The highest allowable pressure for the fluid in the collector.
  • Stagnation Temperature: The maximum temperature that the collector can reach when not actively transferring heat.\
  • Permissible Wind Load: The maximum wind load that the collector can withstand.
  • Permissible Snow Load: The maximum snow load that the collector can withstand.
  • Heat Transfer Fluid: The type of fluid recommended for use in the collector.
  • Absorber Type: The type of material used for the collector’s absorber.
  • Absorber Coating: The type of coating used on the absorber to improve its efficiency.
  • Coating Absorbance: The proportion of incident sunlight that is absorbed by the coating.
  • Coating Emissivity: The proportion of absorbed sunlight that is radiated away as heat.
  • Glazing Glass: The type of glass used to cover the collector.
  • Transmission of Glazing: The proportion of incident sunlight that is transmitted through the glazing.
  • Insulation: The material used to insulate the collector and reduce heat loss.
  • Insulation Thickness: The thickness of the insulation layer.
  • Collector Frame Material: The material used to construct the collector’s frame.
  • Efficiency: The overall efficiency of the collector, based on the area of the absorber.
  • Heat Loss Coefficients: Two coefficients that describe the rate of heat loss from the collector.

The ability to convert solar energy into thermal energy is expressed by the optical efficiency of the system (ŋ0). The global solar radiation varies considerably from region to region. On a clear summer day approximately 850 W/m2 (270 Btu/ft2)can be expected, whereas clouds can reduce it to 400 Btu/ft2 (127 Btu/ft2)

Both Flat Plate and Vacuum Heat Pipe collectors are insulated to prevent heat loss, but due to extremely good insulation properties of the SunMaxx Vacuum heat pipe Solar Collectors, the “only” heat loss is via the SunMaxx Manifold with its small surface area and thick layer of high-quality polyurethane foam
insulation.

While both types of collectors capture the suns energy and convert it to hot water each have there own advantages.

Evacuated Tube Collectors are best used in northern climates where freezing can occur and can be utilized in areas where temperatures drop down to -60°F. Evacuated Tubes are are extremely efficient by virtue of the Tubes themselves. Each Evacuated Tube is hermetically sealed meaning it is highly insulated due to the fact that it is a sealed atmosphere nearly impervious to outside temperatures. Evacuated tubes can also be replaced if damaged, simply by plugging it in, no need to replace the whole unit.

SunMaxx Flat Plate collectors use a highly efficient flat absorber material called Tinox which transfer heat to a series of copper tubes which circulate a 50% glycol/water mix. The collectors themselves are in essence a a sealed insulated box which captures the suns energy and transfers it via the Tinox, then through the pipes filled with glycol and into  the storage tanks.

Yes you can. Collectors can be attached to our ballast system, which uses the weight of standard patio blocks to hold the collectors in place. Wind load calculations must be done by an engineer to conform to local building codes. With the proper weight attached, collectors will stay in place without putting any holes in the roof. This has been done with our evacuated tube collectors and our flat plates. Flat plates obviously have a much higher wind resistance, and therefore require greater weight to hold them in place. Our ballast system will work with photovoltaic panels as well.

There are no guarantees with rafters when it comes to distance apart or consistency. The easiest way to deal with this problem is using the ConnectMaxx rail system. Our roof mounts can be secured where the rafters are, and then our rails can be secured to the roof mounts. All of our collectors can then be secured anywhere along the rails using sliding blocks. When using SunMaxx rails, you can worry less about where the rafters are and more about where you want your collectors!

This answer depends on what you are trying to accomplish. For simple Domestic Hot Water systems you should try and position you collectors at the same angle as your latitude. For systems that are tied into the home heating system, as in a combisystem, you should position you collectors 15 degrees higher than your latitude. For summertime use only systems, as in a pool system, you should position your collectors at your latitude minus 15 degrees.

For systems that have a high solar fraction, i.e. 75% or greater, you should increase the angle of incline in order to decrease your summertime production slightly.

Do you want to make this system perform to its highest ability or should it look nice and fit the architecture of the house?

We have all seen those albatrosses on the roof that are cantilevered at a compound angle to get a few extra BTU’s at the cost of aesthetic appeal. Here are some guidelines to consider when deciding what is most important in determining collector orientation and inclination.

For most collectors, tubes or flat plates, the angle of inclination has a 30 degree window of variation and the performance will still be within 95% of the expected maximum. That is, if your collectors should be mounted at 55 deg then you can mount them between 40-70 while losing only a small fraction of energy gain.

As for the collector orientation, that window is 60 degrees for Evacuated tubes and 30 degrees for flat plates. These considerations allow you to fit the collector to most homes’ pitch and orientation without losing too much energy gain.

Obviously you want your client to get the most out of it, but you are more likely to get additional jobs if the collectors are mounted in a way that takes into account the aesthetic appeal. Ask your Sunmaxx Representative for a copy of the Inclination and Orientation performance Chart so you can make informed decisions.

Yes it is. Depending on your type of collector, you can program your controller to manually activate the circulator which will bring heat from your storage vessel and into the collectors, which will radiate that heat back out thus melting the snow. This method only works for FLAT PLATES however and will usually take as much energy as it makes. When the sun is out in full force, the rays passing through thge snow are typically enough to create substantial heat that in turn, melts the snow on flat plates.

For Evacuated tubes however, there is very little you can do to melt the snow. If your collectors are sitting at a tilt off from the roof pitch, you should be okay because the snow will pass between the tubes onto the roof. But for flush mount EVT systems, snow can and will build up. However, in my experience, this will only affect the output for a day or two. Becuase if the sun is out enough to make any amount of BTU”S then there will be enough heat wasted at the roof/collector interface that begins to melt the snow alowing it to slide down from the top of the tubes. With only minimal exposure to the direct sunlight, the small amount of exposed tube will begin to yield significant amount of BTU’s, even though they are mostly covered. So for tubes, dont sweat it, you are not going to lose much unless of course they get covered by a couple feet or so then perhaps you’ll want to sweep them off if you can.

This will be a debate well in to the future. For an more in-depth review please watch this Click here to watch this 1/2 hour webinar. Your decision should be based primarily on the following considerations:

  • Temperature demand– What is you existing application? EVT’s will outperform FP’s at higher temp load.
  • Climate location- In a general sense, flat plates have more value than evacuated tubes in warmer climates and EVT’s will do better in cold, cloudy climates.
  • Aesthetics appeal– This is where there is no “right” answer. Instead, each person has their own personal view. We recommend that you go with it. If they prefer flat plates for that reason then you install flat plates and if they prefer evacuated tubes for their aesthetic appeal, then by all means, you should install Evacuated tubes.

The point is, you really CANT GO WRONG. Each type will yield significant value and in the end, the differences will be negligible.

Fortunately, solar thermal collectors are not nearly as sensitive to light conditions as PV collectors. As for performance, you have roughly a 60 degree window of opportunity to mount the collectors toward south before you begin losing a small bit of total production. In other words, your house can be situated 30 to the east of true south or 30 degrees to the west of true south and your performance will still be at or above 95%.

As far as tilt angle goes, this window opportunity is slightly smaller but still you can have a roof pitched about 20 degrees plus or minus of your particular latitude angle and you will still see results at or above 95% of expected.

Ask a SunMaxx rep to run a Polysun report for your particular conditions to be sure, you will be happy you did and pleasantly surprised.

Important information

Mounting parts are not included in pre-packaged kits. Montage system depends on a lot of factor like (roof material, rafter spacing etc.) To calculate the collectors mounting parts you can use on of our calculators.

SunMaxx Solar collectors have the below certifications and standards.

  • SRCC OG-100
  • USEC UL 1703
  • ASHRAE Std 93-1986
  • ASTM E 330 (Wind Load Rating)

SRCC OG-100 Certification

Collector Connection Accessories

We recommend the below accessories.

[porto_products use_simple="" ids="2623, 18480, 18481, 18479, 18478, 18446"]

Flat Plate Collector Accessories

We recommend the below accessories.

[porto_products use_simple="" ids="18815, 13063, 18817, 18804, 18473, 18474"]

Flat Plate Collector Mounting Accessories

[porto_products use_simple="" ids="21629, 21622, 21625, 21626, 21634, 21631, 21633, 21635, 21637, 24013"]

Solar Collector Warranty: 10 years

Extended Warranty: Available for purchase with qualified SunMaxx Solar installer.

SunMaxx Solar Collector Warrianty

Need help planning your solar hot water system? (here will be a link to Collector Mounting System Datasheet)

Empty section. Edit page to add content here.

How to Order:

If you are confident with your solar hot water heating requirements you can place your order online by clicking on the add to cart button which is located above. All orders are reviewed by our solar hot water heating department and the customers are contacted in order to ensure that you have ordered the correct merchandise for your application. In the event you have any questions our sales staff are available from 8:30AM to 5:30PM EST.

Silicon Solar Inc ships products internationally please ask your sales representative for a shipping rate to your destination.

Need Assistance?
If you have questions need help or simply feel uncomfortable placing your order online feel free to contact the product representative at 1-800-786-0329.
